Grooved acoustic panel system with high technical and aesthetic qualities. At the technical level it has a high absorption coefficient. Aesthetically it has a linear design, elegant and discreet, very suitable for acoustic conditioning that requires a high level.
Acoustic correction with high aesthetic level. Applicable to walls and ceilings.
Plate lenght: 2400mm.
Plate modulation: 128mm.
Thickness ( back space excluded): 16mm, suitable for walls and ceilings.
The support material is always MDF fiberboard wood panels, in standar and fireproof versions. Surface finishes can be raw, melamine, plywood, varnished or lacquered. Other options available on request.
Decustik plus panels have always a built-in veil on its back, in order to improve its sound absorbing qualities.
Suitable for walls and ceilings, the mounting system is tongue and groove. The linear joins are invisible and the transversal are almost invisible as Testa joins and large dimension plates are used. The roof assembly must be taken special care to ensure cross-linked of alluminium structure. When practicable areas are required, they should be taken in consideration at the moment of the installation.
SLOTTED: 28/4
HOLE DIAMETER: 10mm
SPACING: 16mm
PERFORATED SURFACE: 7’5%
THICKNESS: 16mm
SLOTTED: 14/2
HOLE DIAMETER: 10mm
SPACING: 16mm
PERFORATED SURFACE: 7%
THICKNESS: 16mm
SLOTTED: 13/3
HOLE DIAMETER: 10mm
SPACING: 16mm
PERFORATED SURFACE: 12%
THICKNESS: 16mm
SLOTTED: 9/2
HOLE DIAMETER: 10mm
SPACING: 32mm
PERFORATED SURFACE: 6%
THICKNESS: 16mm
SLOTTED: 6/2
HOLE DIAMETER: 10mm
SPACING: 32mm
PERFORATED SURFACE: 7,6%
THICKNESS: 16mm
SLOTTED: 5/3
HOLE DIAMETER: 10mm
SPACING: 32mm
PERFORATED SURFACE: 11,4%
THICKNESS: 16mm
SLOTTED: 29/3
HOLE DIAMETER: 10mm
SPACING: 32mm
PERFORATED SURFACE: 4,7%
THICKNESS: 16mm
SLOTTED: 12/4
HOLE DIAMETER: 10mm
SPACING: 16mm
PERFORATED SURFACE: 15,1%
THICKNESS: 16mm

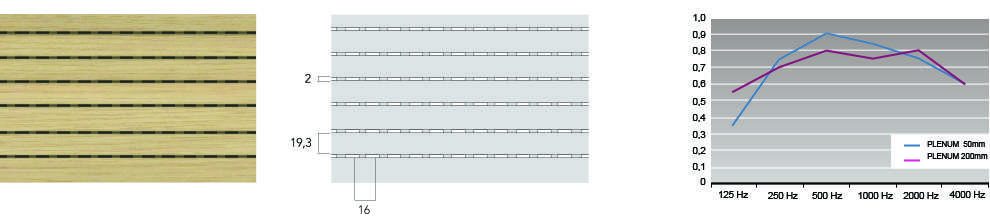

SLOTTED: 19,33/2
HOLE DIAMETER: 10mm
SPACING: 16mm
PERFORATED SURFACE: 6,2%
THICKNESS: 16mm
